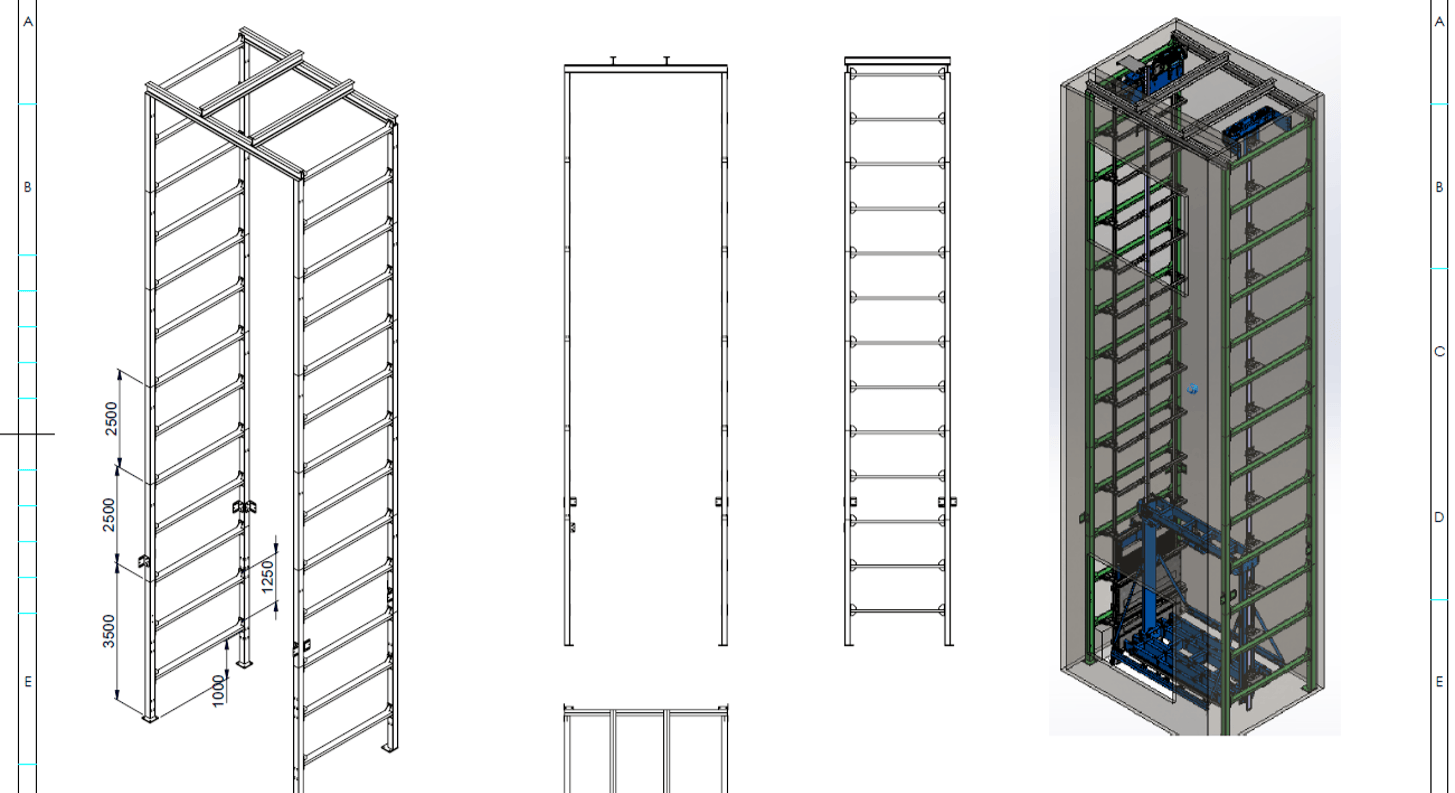

STEEL SHAFT CONSTRUCTIONS

1. Pre-Assembled in Factory

All shaft modules — including columns, beams, brackets, and anchoring components — are manufactured, pre-fitted, and quality-checked in our controlled factory environment.
This approach minimizes the risk of assembly errors and ensures perfect alignment when installed on site.
Every element arrives ready for installation, allowing faster project completion and predictable scheduling.

2. No Welding at Building Site

Our system is designed for bolt and anchor assembly only, eliminating the need for any welding, cutting, or grinding at the construction site.

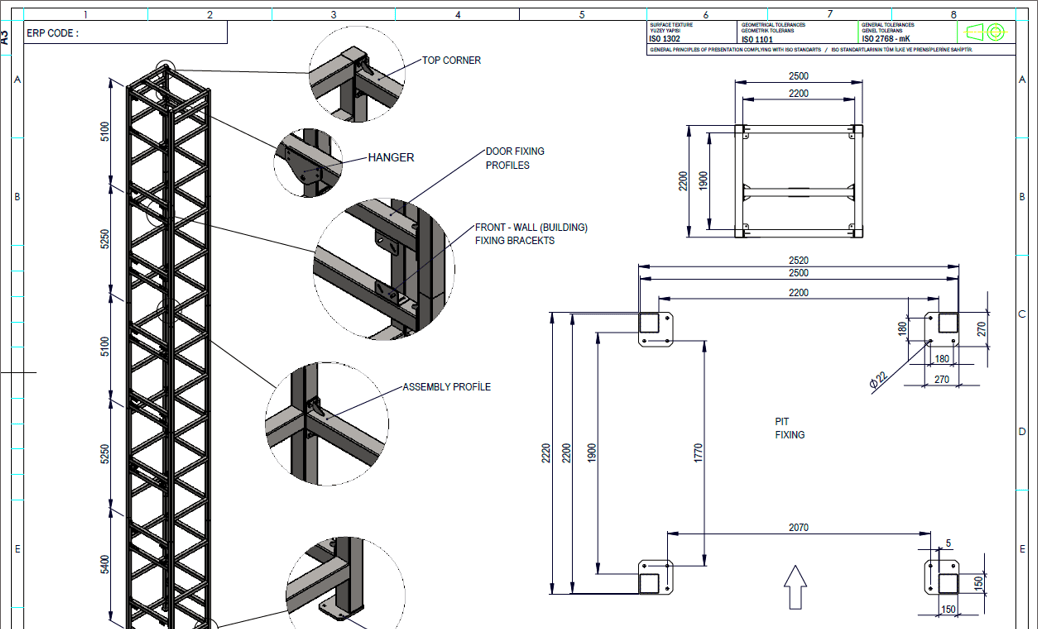

3. Brackets and Door Fixings Ready According to Project

Each shaft is produced according to your specific project requirements.
All door openings, guide rail brackets, and fixing points are integrated during manufacturing — ready to match the exact layout of your elevator system.
No extra drilling, cutting, or adjustments are required at site. Simply assemble, align, and bolt.

4. High-Quality Materials & Standards

Material: S235JR / S355JR structural steel (or equivalent upon request)

Assembly Method: Bolted system – no site welding required

Surface Treatment: Hot-dip galvanized or powder-coated (custom RAL colors available)

Compliance: CE marked, EN 1090-1+A1 and EN 1090-2 certified production

Durability: Suitable for both indoor and outdoor applications, with corrosion protection tailored to environmental conditions

5. Faster Installation – Reduced On-Site Work

Compared to traditional concrete or in-situ steel shafts, our modular system reduces installation time by up to 50–70%.
Pre-engineered modules ensure smooth logistics and quick assembly, even in restricted or retrofit environments.
